Swim & Fun

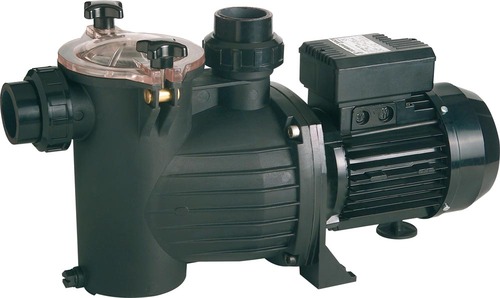

OPTIMA Pump 75, 0.55kW, 0.75HP

1651
Self-priming pump for swimming pools with a large prefilter, particularly suited to working with seawater (AISI-316 stainless steel). Qmax liter/hour; 17.000, Flow at 0,4 bar liter/hour; 16.000, Max. pool volumen liter; 80.000, Hmax (m); 15,5. The pump housing lid and diffuser are made from polypropylene, which is resistant to chemical care products in pool water. It is reinforced with glass fiber, which guarantees excellent durability. Standard asynchronous motor, sealed against external ventilation. Protection IPx55. 50 Hz. Class F insulation. The motor bearings are lifetime lubricated and selected to ensure long durability and a silent working environment. Max temperature of pumped fluid up to 40°c. Ambient air temperature up to 40°c.
Max Pool Volume, l 80000.0
Capacity, l/hr 17000.0
Timer, h No
Hose Connection, mm 38
For Salt Water Pools Yes

Description

A sleek hydraulic pump housing design gives the Optima pump an extra large flow capacity, which is ideal when many litres need to flow through the filter system every day. At the same time the transparent filter cover makes it easy to inspect the large internal pre-filter basket during maintenance. And because none of the parts of the motor are in contact with the water, the pump has a high level of electrical safety.

The pump can work with both chlorinated and salt water
The pump is suitable for working with both chlorinated and salt water (AISI-316 stainless steel) so there is a freedom of choice when it comes to choosing what type of disinfectant you want to use for your bathing water.

The pump housing, lid and diffuser are made from polypropylene, which is resistant to chemical care products in pool water, and it is reinforced with glass fibre, which guarantees excellent durability. Standard asynchronous motor, sealed against external ventilation. The motor bearings are lifetime lubricated and selected to ensure long durability and a silent working environment.

Technical specifications
Qmax litres/hour; 17,000
Flow at 0.4 bar litres/hour; 16,000
Maximum pool volume litres; 80,000
Hmax (m); 15.5
Power supply V/Hz; 230V/50/60 Hz
Maximum priming metres; 2.5
Power; kW; 0.55
HP; 0.75
Amps; 4.3
Fitting size; 50 mm
Maximum temperature of pumped liquid; up to 40°C
Ambient air temperature; up to 40°C
Maximum operating pressure; 2.5 BAR
Weight Net/Gross; 7.9/9.5 kg
Insulation class; F
Safety; IPx5
Net size LxWxH; 470 x 180 x 265 mm
Gross size LxWxH; 630 x 230 x 360 mm

Please note that the pool's guarantee will be void in case the pool is in ground.
