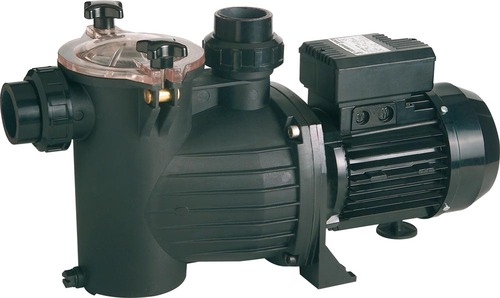

OPTIMA Pump 100, 0.75kW, 1HP
1652
The unique hydraulic pump housing design of the Optima pump gives you up to 70% more bathing water circulation for the same energy consumption. Self-priming pump for swimming pools with a large
prefilter, particularly suited to working with seawater (AISI-316 stainless steel).
Qmax liter/hour; 18.500, Flow at 0,4 bar liter/hour; 18.000, Max. pool volumen liter; 87.500, Hmax (m); 16.
The pump housing lid and diffuser are made from polypropylene, which is resistant to chemical care products in pool water. It is reinforced with glass fiber, which guarantees excellent durability. Standard asynchronous motor, sealed against external ventilation. Protection IPx55. 50 Hz. Class F insulation.
The motor bearings are lifetime lubricated and selected to ensure long durability and a silent working environment. Max temperature of pumped fluid up to 40°c. Ambient air temperature up to 40°c.
| Max Pool Volume, l | 87500.0 |
| Capacity, l/hr | 18500.0 |
| Timer, h | No |
| Hose Connection, mm | 50 |
| For Salt Water Pools | Yes |
Description
The Optima Pump 100 is a high-performance circulation pump designed for larger pool installations where both efficiency and reliability are essential. With its hydraulically optimised pump housing, the pump delivers up to 18,500 litres per hour, making it the ideal choice for pools with a volume of up to 87,500 litres.
The durable pre-filter with large internal basket captures larger debris such as leaves and insects, helping to protect the system from clogging. The transparent lid makes it easy to check when maintenance is needed. Constructed with corrosion-resistant AISI-316 stainless steel components, the pump is compatible with both chlorine and saltwater disinfection systems – giving you complete freedom to choose the water care solution that suits your pool.
The pump housing, lid, and diffuser are made of chemical-resistant polypropylene reinforced with fibreglass for long-lasting durability. The motor is equipped with sealed, maintenance-free bearings and all motor parts are completely isolated from the water – ensuring quiet operation and a high level of electrical safety, even under continuous use.
• Extra high capacity for pools up to 87,500 litres
• Compatible with both chlorine and saltwater systems
• Built-in pre-filter with transparent lid
• Durable, glass-fibre reinforced chemical-resistant housing
• Quiet, electrically safe operation with maintenance-free motor
The Optima Pump 100 is the professional choice for large private pools where maximum flow, build quality and flexibility for accessories and water treatment are key.
Technical specifications
Qmax litres/hour; 18,500
Flow at 0.4 bar litres/hour; 18,000
Maximum pool volume litres; 87,500
Hmax (m); 16
Power supply V/Hz; 230V/50/60 Hz
Maximum priming metres; 2.5
Power; kW; 0.75
HP; 1.00
Amps; 5.5
Fitting size; 50 mm
Maximum temperature of pumped liquid; up to 40°C
Ambient air temperature; up to 40°C
Maximum operating pressure; 2.5 BAR
Weight Net/Gross; 7.9/9.5 kg
Insulation class; F
Safety; IPx5
Net size LxWxH; 470 x 180 x 265 mm
Gross size LxWxH; 630 x 230 x 360 mm
Qmax: The maximum number of litres of water the pump can move when the pump is located at the same level as the water (Hmax= 0).
Hmax: The maximum height the pump can push water up vertically at a pressure of 0.0 bar (at the same level).
