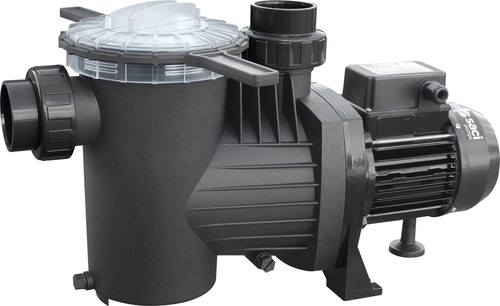

Winner Pump 100, 0.75kW, 1HP

1655
Self-priming pump of 0.75kW for in-ground swimming pools of max. 120,000L. Supplied with a big pre filter which combined with its excellent hydraulic performance, generates an incredibly large filtering capacity. Can work with pumped water up to + 40 ° C.
Max Pool Volume, l 120000.0
Capacity, l/hr 24000.0
Timer, h No
Hose Connection, mm 63
For Salt Water Pools Yes

Download Product Manual

Description

Self-priming pump for in-ground swimming pools. Supplied with a big pre filter which combined with its excellent hydraulic performance, generates an incredibly large filtering capacity. Inspection of the large internal prefilter basket is very easy because of the transparent filter cover. Electrical connection with water is impossible because none of the engine parts are in contact with water. Especially produced to work also with salt water (AISI 316 stainless steel). Pump house, lid and diffuser are made in polypropylene which is resistant to pool chemicals in the water and they have been reinforced with glass fiber to guarantee an outstanding product life. Quality motor bearings ensures a long product life and a low noise environment. Supplied with 50 mm hose glue fittings. IPX5.

Technical specifications
Qmax liter/hour: 24.000
Flow at 0,4 bar liter/hour: 23.200
Max. pool volume liter: 120.000
Hmax (m): 17
Power supply V/Hz:    230V / 50/60 Hz
Max. priming meter:    2,5
Power kW: 0,75
HP: 1,00
Amps: 5,5
Fitting size: 63 mm
Max. temperature of pumped water: 40°C
Max. ambient air temperature: 40°C
Max. operating pressure: 2,5 bar
Weight Net/Gross kg: 10,9/12,5
Insulation class: F
Safety: IPx5
Net size LxWxH mm: 550 x 200 x 329
Gross size LxWxH mm: 600 x 225 x 345
