Swim & Fun

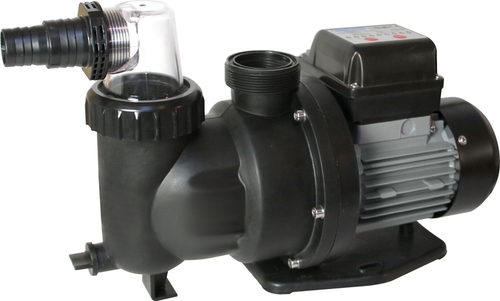

Pump w/Timer 250W

1861
High-tech pump with integrated timer. 250 Watt circulation pump that can handle filter systems for swimming pools of up to 22,500 litres. The pump has an effective cleaning capacity of 4,500 l / h at 0.4 bar. The pump is recommended for smaller free-standing garden pools, hot tubs and pools.
Max Pool Volume, l 22500.0
Capacity, l/hr 7500.0
Timer, h Yes
Hose Connection, mm 32; 38
For Salt Water Pools No

Download Product Manual

Description

Ensure stable and efficient water circulation in your garden pool with this reliable and user-friendly circulation pump with integrated timer. With a pump capacity of up to 7,500 litres per hour and a power output of 250 watts, this pump is ideal for freestanding pools with a water volume of up to 22,500 litres. It is suitable for both chlorine and saltwater disinfection systems and is designed for seasonal outdoor use in Nordic conditions.

The built-in timer makes it easy to maintain consistent and energy-efficient water circulation – with no daily manual effort. Simply select how many hours per day the pump should operate, and it will automatically turn on and off at the same time each day. The integrated battery backup ensures your settings are saved in the event of a power outage – and operation will resume as normal the next day.


• Timer function with automatic daily start and stop
• Efficient performance for pools up to 22,500 litres
• Suitable for both chlorine and saltwater treatment systems
• Compatible with pool accessories such as filter systems and solar heaters
• Ready to connect with standard hose fittings (32/38 mm)


The pump features a compact and weather-resistant design, making it perfect for outdoor placement next to the pool. Its quiet operation and robust construction ensure a reliable water flow that helps prevent stagnant water and reduces the build-up of algae and impurities. A dependable solution for anyone seeking automated control and hassle-free pool maintenance.


Technical specifications
Article number; 1861
Pump capacity; 7,500 litres per hour
Effective cleaning capacity at 0.4 bar; 4,500 litres per hour
HP; 0.3
Maximum pool volume litres; 22,500 litres
Pump power W/kW; 250 Watt/0.25 kW
Qmax; 125 l/min
Hmax; 7.5 metres
Power supply; 220 - 230 volt / 50 Hz
Hose connection; Ø32/38 mm
Sound level dB: 65-70
IP classification; IPx5
Integrated timer; Yes

Height: 28.5 cm
Width: 17.5 cm
Length: 45.3 cm
EAN; 5704841018617

Qmax: The maximum number of litres of water the pump can move when the pump is located at the same level as the water (Hmax= 0).
Hmax: The maximum height the pump can push water up vertically at a pressure of 0.0 bar (at the same level).
