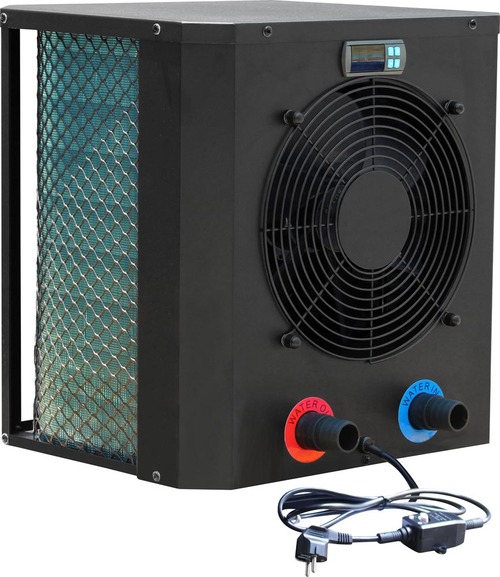

Heat Splasher ECO Heat Pump 5.5kW

This is a heat pump with a price and quality suitable for free-standing summer pools. The Splash Heater ensures that the water in the pool is lovely and warm, extending the swimming season by several months.

The Splash Heater is a plug and play model, which means that you can quickly and easily install it yourself. It can then be just as quickly removed at the end of the bathing season.

The heat exchanger is made from titanium, which is resistant to corrosion from pool chemicals such as chlorine and salt.

Supplied with refrigerant gas R32 with a GWP*1 of just 675. It also works with low-current circulation pumps and comes with an RCD integrated mains plug, 4 metre cable and 38 and 32 mm hose couplings.

Tecnical data
Temperature down to; +12ºC
Power V/pH/HZ; 220-240/1/50
Heat exchanger; Titanium
Control; Digital
Compressors; 1
Cooling media, freon free; R32
Fans; 1
Hose connection mm; 32/38 mm
Protection; IPx4
RCD protection mA; 10

Specifications
Model; 1297
Air 28°C, Water 28°C, humidity 80%
Heat Output (kW); 5.5
Power consumption (kW); 1.31
COP; 4.2
Air 15°C, Water 26°C, humidity 70%
Heat Output (kW); 4.2
Power consumption (kW); 1.2
COP; 3.5
Voltage; 220-240V~50Hz/1PH
Rated Current A; 5.8
Fuse current A; 16
Maximum pool size
(with pool thermal cover) m3*** ; 14
Recommended pool size
(with pool thermal cover) m3*** ; 9-12
Recommended water flow m3/h; 2.5-3.2
Water pressure drop kPa; 15
Condenser; Titanium heat exchanger in PVC
Water pipe in-out mm; 38/32
Fan speed RPM; 1100
Sound level (10 m) dB(A); 46
Sound level (1 m) dB(A); 55
Refrigerant type; R32
Refrigerant quantity g; 550

Net weight kg; 28
Gross weight kg; 31
Net dimensions mm; 434 x 432.5 x 460
Gross dimensions mm; 515 x 515 x 540

*: Global Warming Potential. R410A har en GWP på 2088.

**: Measurement conditions: ambient temperature 27ºC, water temperature 27ºC, relative humidity 80%. ***: Maximum pool volume when completely insulated, with pool cover, out of the wind and in the sun.

*** From May to August, completely insulated, with pool cover, out of the wind and in the sun.

 How to find the right heat pump
It is necessary to understand that the heat capacity and the performance of the pump depend on the climate you live in. Areas with cold climates have a shorter swimming pool season. Therefore, hot pool water in the north requires heat pumps with higher capacity than in medium to warmer climates.

The illustration is an approximate estimate of the climate differences, and thus an indication of what type of heat pump you should consider buying to get the right performance.
