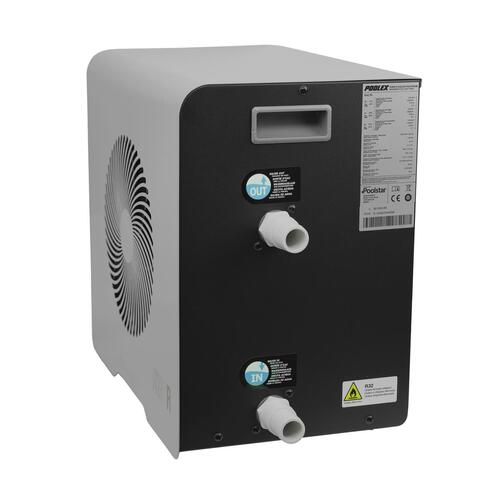

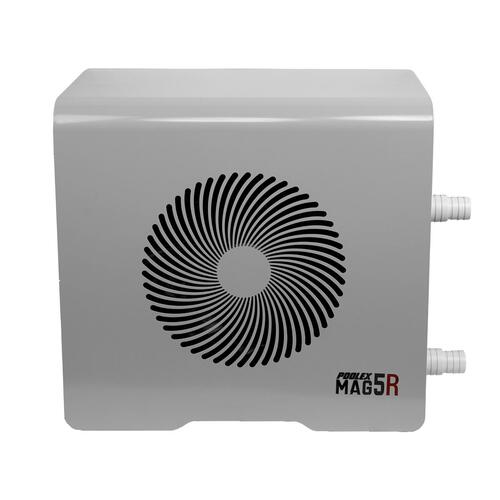

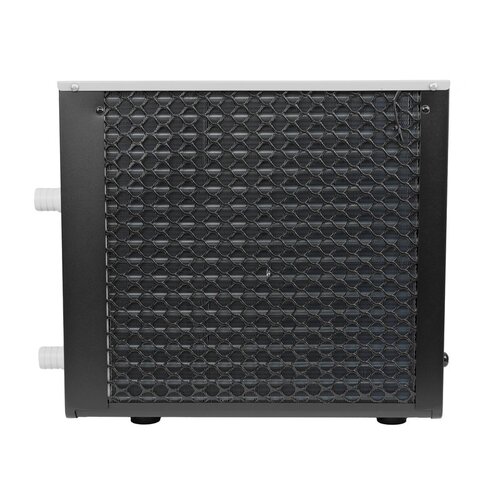

Pico MAG 5R Heat Pump 5kW

The Pico MAG 5R heat pump available from Swim & Fun is the smallest heat pump that works down to -5°C. Perfect for the Nordic climate and extends the bathing season to be even longer than with a conventional heat pump. A high quality, economical and reliable heat pump. The compressor in the heat pump is from the renowned Japanese manufacturer Toshiba, which is one of the largest and most reputable manufacturers in the world.

• Works down to -5°C and heats up to 40°C
• Built-in Wi-Fi – Easy control via app, no matter where you are
• Reversible heating and cooling system
• Plug and Play
• Toshiba compressor

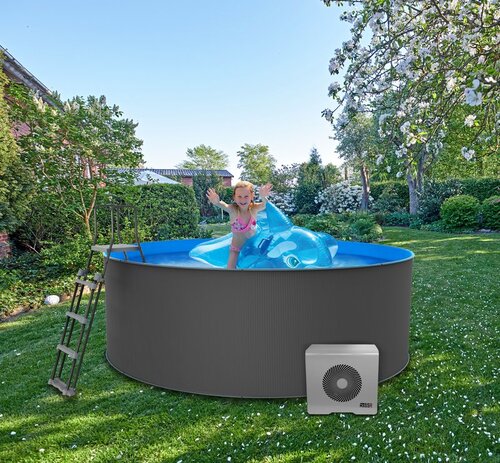

This small heat pump is made for small garden pools and spa and ready out of the box. Very easy to install; connect the hoses and plug and play. It is made to be very silent, so you can rest assure that your neighbours will not hear it.
With built-in Wi-Fi, you have full control of your heat pump – directly from your smartphone, whether you're at home or on the go. The smart app makes it both user-friendly and convenient to keep your pool ready to use exactly when it suits you.

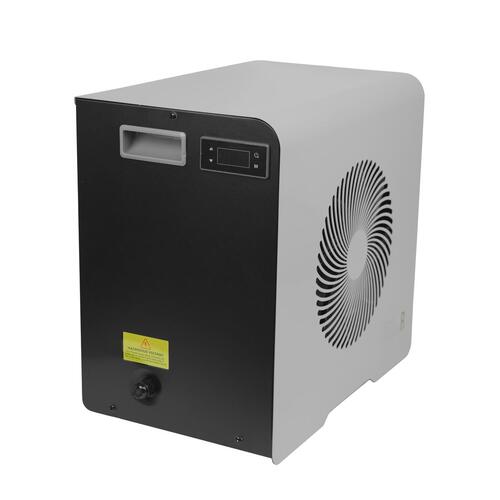

The Pico MAG 5R heat pump is a freestanding model with a waterproof digital LCD display made easy to control the temperature with a reversible heating and cooling system. You can not only set the heat pump to heat to a desired temperature, but you can also set it to cool the water in your pool or spa at hot summer times.

The model has been engineered and designed to be highly suitable for freestanding pools and spa, where the emphasis is on low operating costs for an affordable acquisition price. Compared with an electric water heater you can save up to 80% on operating costs. In other words, for every 1kW consumed, 5kW are returned because of its high performing Toshiba compressor.
The heat exchanger in this model is made of PVC and titanium tubes that can withstand sustained exposure to swimming pool water – both chlorine and saltwater. Temperature working range goes from -5°C to +43°C. The heat pump is equipped with a rotating compressor and a heavy-duty shell, anti-UV treated and easy to maintain. Power supply 220-240V/1 PH/50 Hz. 1 fan. Environmentally friendly R32 (gas).

Note: This product must only be installed by a certified electrician.

Technical specifications
Art. No.:1059
Power supply V/Ph/Hz: 220-240/1/50
Max. current (A): 6.9
Max. Pool Volume l*: 20,000
Recommended pool volume l*: 10,000-16,000

At air 26°C/water 26°C/Humidity 80% *
Heating capacity kW: 5.0
Power consumption, W: 862
COP: 5.8

At air 15°C/water 26°C/Humidity 70% *
Heating capacity kW: 3.7
Power consumption, W: 822
COP: 4.5

Compressor
Compressor brand: Toshiba
Compressor type: Rotary
Refrigerant gas (freon free): R32
Heat exchanger: PVC tank and titanium heating coil

Operating temperature range (Air),°C: -5 - +43
Temperature setting range (heating/cooling), °C:  8-40
Min. water flow rate m3/h: 2.5
Water connection inlet/outlet mm: 32 / 38
Noise at a distance of 10 metre dB (A): 36
Protection IP grade: IPX4
Mode: heating/cooling

Dimensions and weight
Net weight kg: 28
Size L/W/H mm: 470x290x430

*From April to September, completely insulated with pool cover, out of the wind and in the sun.

Note: From 2025, the 1059 Pico is upgraded to Pico MAG – with built-in Wi-Fi and a new, stylish grey design.

How to find the right heat pump
It is necessary to understand that the heat capacity and the performance of the pump depend on the climate you live in. Areas with cold climates have a shorter swimming pool season. Therefore, hot pool water in the north requires heat pumps with higher capacity than in medium to warmer climates.
The illustration is an approximate estimate of the climate differences, and thus an indication of what type of heat pump you should consider buying to get the right performance.
